​产品展示

分体红外线​桥式切割机系列

一体红外线​桥式切割机系列


一体红外线​桥式切割机系列(可倒角)

Screen Shot 2021-05-26 at 12.30.28 pm.pn
Screen Shot 2021-05-26 at 12.30.39 pm.pn

​桥式中切机

​桥式组合切机

​简介

桥式组合切机适用于 高价值花岗岩、大理石荒料的切割。根据需求不同可以使用单片或者不同尺寸的刀头组合的多片切。其上下升降采用液压升降(也可采用丝杆升降),左右走刀由变频控制。其具有切割效率高、分片精度高、切割出来的板材平整度完好,稳定性高,操作简单等优点。



优势特点:

1:  荒料可直接置与地面,节省了台车及其维护费用。



2: 前后分片采用高精度丝杆螺母传动,自动分片。



3: 该机左右走刀采用变频器控制,可根据石材材质进行调速。

​CNC五轴加工中心

​电脑仿形机

​产品展示

加工中心系列


​CNC五轴加工中心-CNC WORK CENTRE

INTRODUCTION ​

CNC-5A is designed by our company. It adopts the advanced technology and electrical components of an Italian company ESA. A range of complex processing operations can be achieved by CNC-5A including cutting, milling, drilling, and engraving. CNC-5A can widely be used for processing countertops in various sizes.



Advantages

1. Main components such as the CPU, the servo motor, and the cables are all designed in and imported from Italy;

2. CNC-5A  can use a CAD file from an external source. It can generate processing code and conduct virtual processing;



3. CNC-5A has different processing modes including the cutting mode, the milling mode, the engraving mode, and the drilling mode. Users can set up based on needs;

4. CNC-5A  can be remotely controlled. It supports remote fault diagnosis and remote programming.

切割机系列

Screen Shot 2021-05-26 at 12.30.28 pm.pn
Screen Shot 2021-05-26 at 12.30.39 pm.pn

一体红外线​桥式切割机系列(可倒角)-INTEGRATED BRIDGE SAW (YTQJ-500B)

Introduction​

Based on the YTQJ-600, YTQJ-600B adds a workbench with 360-degree automatic rotation, which can cut at different angles. The cutting head can be tilted from 0 to 50 degrees, performing chamfering. The whole machine is integrated, compact and stable in structure, is simple in operation, and has high cutting accuracy. It is an ideal equipment for processing and chamfering of high-priced granite, marble, and quartz stone plates, which makes it the first choice for kitchen and bathroom decoration.


Advantages

1. It is equipped with a PLC control system with a human-machine interface that can manage the cutting speed, the cutting quantity, and the cutting size.

2. It is equipped with an infrared alignment device. The device provides the user with visualisation of the starting cutting position, helping to save materials.



3. The cutting head has a chamfering function which can tilt 0-50 degrees;

5. The workbench can rotate 90 degrees, and also the workbench can tilt up to 85 degrees in order to place slabs easier.

6. A bigger workbench than YTQJ-500 and YTQJ-600. The maximum working dimensions are 2200mm x 3200mm x 1600mm.

7. Including a wireless remote controller.


红外线一体切割机-INTERGRATED BRIDGE SAW

Introduction


Integrated bridge saw are currently the most popular stone cutting machines on the market. They are suitable for processing marble, granite, and other stone. Our machines use a PLC control system that directs the movement of crossbeams, spindle boxes, and workbenches, achieving two-dimensional cutting results. These all-in-one cutting machines have stable performance and high accuracy and are ideal slate cutting equipment. To meet the different needs of our customers, we produce two models of this machine - YTQJ-500 and YTQJ-600.

Advantages

1. It is equipped with a PLC control system with a human-machine interface that can manage the cutting speed, the cutting quantity, and the cutting size.

2. It is equipped with an infrared alignment device. The device provides the user with visualisation of the starting cutting position, helping to save materials.

3. A wireless remote controller is provided, in order to ease operating the machines.

4. The workbench can tilt up to 85 degrees in order to place and move slabs easier.

5. Two different models can meet the needs of different customers.

(Maximum working dimensions of YTQJ-500: 3200mm x 2000mm x 110mm;

Maximum working dimensions of YTQJ-600: 3200mm x 2000mm x 160mm)

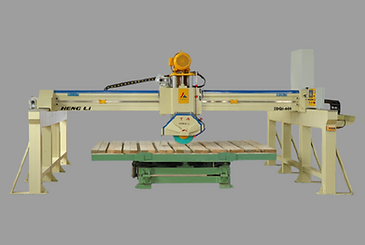

红外线分体切割机-BRIDGE SAW

Introduction
ZDQJ-400 and ZDQJ-600 are a split type of bridge Saw in which the workbenches are separated from the main part. Our bridge stone cutting machine is ideal and specific for cutting slabs of quartz, marble, granite, and stone. The movements of this machine which include the movement of the crossbeam and the workbench are controlled by the PLC system. The machines can complete a two-dimensional cutting performance. Our company includes two models of bridge saw which are ZDQJ-400 and ZDQJ-600. They can satisfy the different needs of customers.

Advantages

1. It is equipped with a PLC control system with a human-machine interface that can manage the cutting speed, the cutting quantity, and the cutting size.

2. It is equipped with an infrared alignment device. The device provides the user with visualisation of the starting cutting position, helping to save materials.

3. The workbench can rotate 90 degrees, and also the workbench can tilt up to 85 degrees in order to place slabs easier.

4. Compared to the integral structure machines, it is cheaper.



5. Two different models which can meet the different needs of customers.

(The maximum working dimensions of ZDQJ-400: 3200mm x 2000mm x 100mm;

The maximum working dimensions of ZDQJ-600: 3200mm x 2000mm x 200mm)




​桥式中切机-BLOCK CUTTING MACHINE

Introduction
Block Cutting Machine is suitable for cutting large thickness stones such as road stones. The movements of the crossbeam and the workbench are controlled through a PLC system, which allows it to achieve a two-dimensional cutting effect.

Advantages
1.
It is equipped with a PLC control system with a human-machine interface that can manage the cutting speed, the cutting quantity, and the cutting size;

2. It is equipped with an infrared alignment device. The device provides the user with visualisation of the starting cutting position, helping to save materials;

3. The workbench can rotate 90 degrees, and also the workbench can tilt up to 85 degrees in order to place slabs easier.


​桥式组合切机-MULTIPLE BLAD CUTTING MACHINE

Introduction

The Multiple Blad Cutting Machine is suitable for cutting granite and marble blocks. The machine can apply different blades together or a single blade according to requirements. The up-down movement is controlled by a hydraulic system and left-right movement - by a variable frequency drive.



Advantages

1. Blocks can be placed directly on the ground, so the workbench is not needed which reduces the maintenance costs;

2. The left-right movement of cutting is controlled by a variable frequency drive and can be adjusted based on the kind of materials being processed.


​手摇切边机-MANUAL EDGE CUTTING MACHINE

Introduction

This machine has an integral structure. And the working head can rotate 180 degrees. The up-down movement can be controlled electrically. The workbench is controlled manually. The whole machine has a compact structure, beautiful appearance, stable performance, and high processing accuracy. It is suitable for trimming small plates, battens, thick plates, and chamfering.

磨机系列

​自动磨边机​-EDGE POLISHING MACHINE

Screen_Shot_2021-06-24_at_9.26.05_pm-rem

INTRODUCTION
The automatic edge grinding machine is suitable for edge grinding and polishing in a straight line. The machine's upper and lower polishing wheels can be tilted at 45 degrees at the same time, allowing straight surface chamfering and polishing in one pass.

ADVANTAGES

1. The grinding and polishing process can be finished in one pass;

2. The machine is equipped with pulleys to facilitate the safe movement of the slabs;

3. The machine uses the latest intelligent system, which can automatically identify the length of the slabs.


​龙门磨边机​-EDGE POLISHING MACHINE

INTRODUCTION
Auto stone edge polishing machine works on profiling and polishing of stone edges like granite and marble. It is able to do straight edge and curved edges of diversified shapes. It is suitable for making countertops, vanity tops, steps, window sill, door frames, skirting boards, bar lines, and decorative marbles. With saw blades, It can be also used as a stone cutting machine

ADVANTAGES
1. The machine adopts frequency conversion infinitely adjustable speed mechanism, the processing travel speed is adjustable between 0.25-4.5M/min, which can meet various processing needs.

2. The machine adopts automatic lifting, which greatly reduces the labour intensity of workers and improves labour efficiency.




​磨边机​-MANNUAL EDGE POLISHING MACHINE

Manual stone edge polishing machine works on profiling and polishing of stone edges like granite and marble. It is suitable for making countertops, vanity tops, steps, window sill, door frames, skirting boards, bar lines, and decorative marbles. It is able to do straight edge and curved edges of diversified shapes.

​自动磨机​-STONE POLISHING MACHINE


INTRODUCTION
Our stone polishing machine is special processing equipment for grinding and polishing stone plates. It can be equipped with rough grinding, medium grinding, fine grinding, and polishing heads according to different needs. It is suitable for marble, granite, and artificial stone slabs. This machine can feed the slabs continuously, which makes it an efficient and advanced grinding and polishing system.

ADVANTAGES
1. Except for the feeding and removing slabs which require manual labour, the whole polishing process can be completed continuously and automatically, with high production efficiency.

2 it can apply different polishing heads based on the type of slabs.

3. Integrated design. Easy to set up and move.



其他机型


​电脑仿形机-STONE PROFILE CUTTING MACHINE

INTRODUCTION
Stone profile cutting machine is designed to process different stone curves such as processing domes, roman columns, and curved surfaces of any shape. It utilises three-dimensional numerical control technology, with dimensions such as length, thickness, radius, and other data that are input through the keyboard during operation. It can also be used as a general cutting machine. It can be used on two slabs at the same time or on a single slab.

ADVANTAGES
1. The electrical system uses a highly reliable computer control system, which is easy to operate and has a high degree of automation.

2. This machine is convenient and flexible to operate. It is easy to learn, accurate in cutting, high in production efficiency, and free from defects.

3. Reasonable structure and high rigidity


​荔枝面喷砂机-LITCHI SURFACE PROCESSING MACHINE

​INTRODUCTION
Litchi Surface Processing Machine produces lychee surface stone by the high-pressure impact of steel grits on stone. The whole process starts with putting the stones on a conveyor belt manually or through automated equipment. The conveyor belt sends the stones to the blasting chamber. The centrifugal ejector projects the steel grits on the surface of the stone. Then, the finished products leave the conveyor belt to the area of the finished product. The steel grit can be reused after recycling, sorting, and other procedures.

ADVANTAGES

1. The size of the steel grits is equal. The blasting process is automatic, and the surface of the finished products is uniform.

2. The steel grits can be reused, which not only reduces the investment cost but also is environment-friendly.

3. High efficiency. It can produce from 1 meter (granite) to 3 meters (marble) per minute.

4. The coarseness of the surface can be adjusted according to requirements by using steel grits of different types and sizes.

5. There are no restrictions on the types of stone materials that can be processed. Granite, sandstone, marble, and other slates will not be burned.

6. Sandblasted products are of high quality and beautiful appearance without blind spots. Compared with traditional handwork, this technology frees up manpower and improves efficiency. At the same time, the lychee surface produced under the impact of sand and gravel is more uniform and rougher than that of fire
.
